Functional analysis of DNA methylation at CpG resolution.

GitHub· cinderplot· SeSAMe2· SignatureAtlas

Install — then fetch once

# both binaries, from conda
conda install -c zhou-lab -c conda-forge kycg yame

# or build from source (YAME is a submodule)
git clone --recurse-submodules \
  https://github.com/zhou-lab/kycg
cd kycg && make && make yame-bin

Install yame too. kycg links libyame statically, so the backend's library is inside the binary — but the yame command is a separate package, and the row-space check below needs it. From source, make builds only the library; make yame-bin adds external/YAME/yame.

Dependencies are YAME's — vendored htslib, zlib, libm, pthreads and librt, plus libcurl for fetch (optional; make CURL=0 builds without it) — with YAME linked statically from a pinned submodule. kycg --version (or -v) reports the coupled YAME version, the registry tag it can verify, and whether the build has libcurl.

# guided: location, collection, sets, confirm
kycg fetch

# or name what you want outright
kycg fetch mm10
kycg fetch hg38:CGI,ChromHMM

# open with hg38 checked; f to start
kycg fetch hg38
Downloads happen in fetch and nowhere else, and every question is gated on an interactive terminal. Inside a Nextflow job or a Docker build there is nobody to answer, so an explicit target proceeds without asking and a missing one is an error rather than a hang.

The store — fetch, verified

Knowledgebases lived in three places with three access patterns and no verification. fetch is the tie.

# -f skips the browser: plan, then fetch
$ kycg fetch -f mm10:CGI

==> Knowledgebase sets to download
    mm10  •  KYCGKB_mm10  •  ~/.local/share/yame/mm10/KYCG

    CGI.20220904.cm                                  120 KB
    cpg_nocontig.cr                                 22.7 MB

    2 file(s), 22.8 MB

✓ CGI.20220904.cm                    120 KB
✓ cpg_nocontig.cr                    22.7 MB

✓ 2 fetched (22.8 MB).

…into a plain layout keyed on the target you fetch — the address you browse to, not the repo it came from — shared with the rest of the suite. A .cm in the store is an ordinary file that kycg test -m takes by path. No database, no lockfile, no bookkeeping.

~/.local/share/yame/
├ mm10/                   # whole genome (KYCGKB_mm10)
│ ├ cpg_nocontig.cr         # the row list
│ └ KYCG/
│   ├ ChromHMM.20220414.cm
│   └ SHA256SUMS
└ MSA/                    # array (InfiniumAnnotation)
  ├ MSA.ordering.tsv.gz     # probe ordering
  └ KYCG/
    ├ CGI.20220904.cm(+.idx)
    └ SHA256SUMS
Re-runs are cheap: a file already present with the right digest is not re-downloaded. Set the root with $YAME_DATA_HOME.

Pick what you need — r, i, -o

The full hg38 collection is 363 MB. You rarely want all of it.

# a tree — → unfolds a target in place
$ kycg fetch
    target  kind          rows        source           cached_sets
  ▸ hg38    whole genome  29,401,795  KYCGKB_hg38      3/32
❯ ▾ mm10    whole genome  21,867,837  KYCGKB_mm10     28/28
    ├ CGI       CGI…cm       120 KB  cached
    ├ ChromHMM  ChromHMM…cm  857 KB  cached
    ├ PMD       PMD…cm      16.3 KB  cached
  row 1 of 10  •  0 selected  •  → open  ← close  space select  i close  f fetch  d store   q quit

# or name it directly — opens with those checked
$ kycg fetch hg38:CGI,ChromHMM

# no browser, no questions (scripts, Docker, Nextflow)
$ kycg fetch -f hg38:CGI,ChromHMM

i opens a pane answering what a set actually is. It is on by default and follows the cursor, so arrowing down walks you through the catalogue with each set explained as you reach it — i hides it when you want the full screen for scanning:

  TFBSrm  Transcription factor binding sites, ReMap

  A larger, uniformly reprocessed TF binding compendium — around 1,188
  factors — built from published ChIP-seq rather than one lab's panel.
  The rm suffix is ReMap, not repeat-masked.

  source      ReMap 2022, non-redundant MACS2 peaks
  citation    Hammal et al. 2022, Nucleic Acids Res, doi:10.1093/nar/gkab996
  processing  remap2022_nr_macs2 peaks, one set per factor.
Provenance is compiled into the binary from data/knowledgebases.tsv, so i works offline. A field nobody has been able to establish reads not recorded rather than being quietly omitted — an honest gap beats a plausible invention. -o takes set names, not file names — ChromHMM, not ChromHMM.20220303.cm.

Test — the core

Hypergeometric tail, six effect sizes, stratified FDR. 21.8M rows in 0.12 s.

kycg test -m ~/.local/share/yame/mm10/KYCG/ChromHMM.20220414.cm \
  query.cg > res.tsv

-m is repeatable — this is what makes a store worth having. One pass, one table, one FDR correction:

kycg test $(for f in ~/.local/share/yame/mm10/KYCG/*.cm; do
        printf -- '-m %s ' $f; done) \
  query.cg > res.tsv

Omit -m on a terminal and kycg offers the store — filtered to the sets that share your query's row space, so the list cannot be picked wrong:

$ kycg test onecell.cg

Knowledgebases for 21,867,837 rows -- space to choose, t to test
        TARGET   KIND          ROWS                    TAG        IN STORE
  ▪ MOUSE
  ▾ [*] mm10     genome  21,867,837                    mixed ▰▱▱▱▱    4/29
  └── ▾ [*] KYCG        sets                           v2    ▰▱▱▱▱    3/28
      ├──   [ ] Blacklist.20220304.cm                  v2            636 B
      ├──   [x] CGI.20220904.cm                        v2         120.0 KB
      ├──   [x] ChromHMM.20220414.cm                   v2         857.4 KB
❯     ├──   [ ] ChromHMMfullStack.20231222.cm          v2           6.1 MB
  …
  row 7 of 31  •  2 selected  •  i info  f fetch  t test  h keys  q quit

It is the same browser fetch uses, showing only the collections whose row count matches the query. A set you do not have yet is still listed: check it, f to fetch it, then t to test against it without leaving. The browser is coloured whenever it draws; for plain text use -l, -y or a pipe. A terminal that cannot address the cursor (TERM=dumb) or a redirected stdout falls back to plain TSV instead.

Testing against 30 knowledgebases in 30 processes decompresses the query 30 times. Pooling them decompresses it once.

-c takes a continuous query instead — a beta value or a score per row (format 3 or 4) — and asks whether each set crowds its large or its small values, with a GSEA-style running sum, as knowYourCG's testEnrichmentSEA does:

kycg test -c -m mm10:ChromHMM beta.cg > res.tsv

estimate is then the enrichment score in [-1, 1]: positive when the set sits at the large values, negative at the small ones. That is GSEA's sign, and knowYourCG's from 1.9.3; 1.8.x had the reverse. The p-value comes from 1000 permutations with both tails pooled, so negating the query negates the estimate and leaves the p-value alone.

Read the result — top hits

One row per (query sample, knowledgebase record), sorted by significance.

$ kycg test -m ChromHMM.cm -m CGI.cm -m PMD.cm \
    onecell.cg | cut -f3,4,10,13

db_file          db         estimate  fdr
PMD…cm           commonHMD  0.275     0
ChromHMM…cm      Quies      0.199     0
ChromHMM…cm      QuiesG     0.253     0
ChromHMM…cm      Tx         0.307     0
CGI…cm           Shore      0.196     9.17e-266
Those zeros are real, and they are why this tool is log-space. p_value and fdr are conveniences, recovered as 10^log10_p; they underflow around -308 while real enrichments run past -1500. Sort and threshold on log10_p and neglog10_fdr.

Check the row space — yame info

Everything is positional: row i must mean the same CpG in the query and in the knowledgebase. Confirm with yame info before you test — yame is kycg's backend but a separate command, from its own package (conda install -c zhou-lab -c conda-forge yame, or make yame-bin in a source tree). kycg itself has no info subcommand.

$ yame info onecell.cg ChromHMM.20220414.cm
File        Sample Ncol Nrow     Format UnitBytes Keys
onecell.cg  1      NA   21867837 3      1         NA
ChromHMM…cm 1      NA   21867837 2      1         N=19|Quies,…

Mismatches fail loudly, naming both files and both counts:

Row count mismatch: query 'small.cg' record '1'
has 5 rows but knowledgebase 'chromhmm.cm'
record '1' has 21867837 rows.
These files index different reference row
lists and cannot be compared.
kycg checks lengths and stops there. It cannot detect two files that share a row count but come from different row spaces — sequencing indexes a whole-genome .cr, arrays a per-platform ordering. Matching them is yours to get right; the picker above helps by offering only sets whose row count already agrees.

Annotate — label probes by set

The lookup half of the same data test aggregates over: test asks whether a group of probes is enriched somewhere, annotate asks where one probe actually falls. It reads a TSV of probe IDs and writes it back with one column added per knowledgebase.

$ kycg annotate -m EPIC:CGI,ProbeType hits.tsv
# every input column and row kept, in order, plus:
Probe_ID     …   CGI     ProbeType
cg00000029   …   opensea cg
cg00000109   …   island  cg

# -i gives a 0/1 indicator column per set instead of names
$ kycg annotate -i -m EPIC:CGI hits.tsv
Arrays only, and the platform is named, never inferred: a probe ID has no meaning without the ordering that gives it a row. A probe absent from that ordering is reported as NA and counted, not dropped.

Plot — cinderplot, separately

kycg emits TSV; cinderplot renders it as its own process. No linking, so Cairo never enters kycg's dependency surface.

# volcano — drop the zero-overlap sentinel first
awk -F'\t' 'NR==1||($10>-1000&&$10<1000)' res.tsv > v.tsv
cinderplot 'v.tsv
  + aes(estimate, neglog10_fdr)
  + geom_point() + theme_minimal()' -o v.pdf
estimate is not always finite. It is log2 of the odds ratio, and zero overlap makes that log2(0), clamped to a sentinel near -1022 (infinite odds ratio lands near +1024). On a whole-genome query most sets have no overlap, so most rows carry it — filter abs(estimate) < 1000 before plotting, exactly as KYCG_plotVolcano does.
neglog10_fdr is precomputed because cinderplot has no -log10() transform in aesthetics, and it is the y-axis of three separate plots. Any arithmetic a plot needs is done in C.

Case studies — recovering known biology

Does kycg recover known biology? Two angles. A tissue's hypomethylated CpGs mark the regulatory DNA it holds open — fed to kycg test against transcription-factor binding sites (ReMap, 638 factors), the top hits are that tissue's lineage regulators, no tuning. And a whole sample's methylation, averaged over metagene coordinates, redraws the classic gene architecture. Click any figure to enlarge; everything regenerates with the scripts below (plotted with cinderplot, no R, from kycg-examples).

# the plotting is cinderplot; install it alongside kycg and yame
conda install -c zhou-lab -c conda-forge cinderplot
git clone https://github.com/zhou-lab/kycg-examples
bash kycg-examples/scripts/tissue_tfbs_enrichment.sh   # the three TF panels
bash kycg-examples/scripts/metagene_profile.sh         # the metagene profile

The kycg-examples repo also carries the sample .cg / .cm the snippets above use (onecell.cg and friends) — neither the package nor the main repo ships query data.

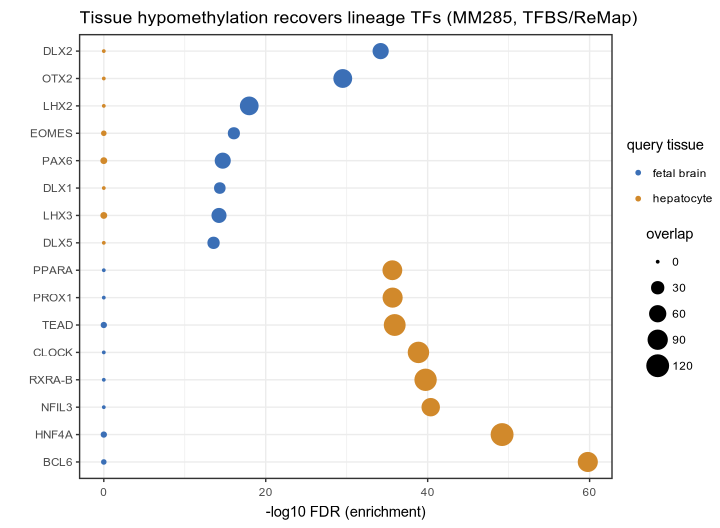

Paired dot plot: top TFs for fetal brain and hepatocyte, disjoint signatures
# tissue Hypo probes vs TF sites
kycg test -m MM285:TFBSrm *_hypo.cg
cinderplot 'aes(factor(tf), neglog10_fdr,
  colour=tissue, size=overlap)
  + geom_point() + coord_flip()'
Two tissues, disjoint signatures. Each tissue's top-8 TFs, shown for both. Fetal brain → neuronal (DLX, OTX2, PAX6, LHX); hepatocyte → hepatic (HNF4A, PPARA, RXRA). Each is absent in the other.

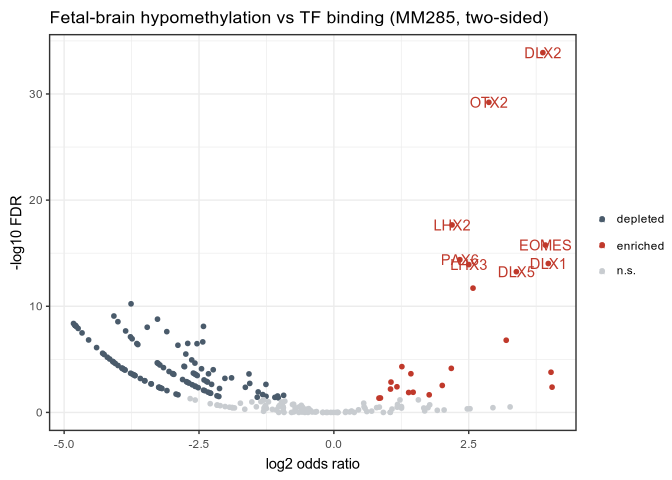

Volcano: fetal-brain hypomethylation vs TF binding, neuronal TFs labeled
kycg test -a two.sided \
  -m MM285:TFBSrm fetal_brain_hypo.cg
cinderplot 'aes(estimate, neglog10_fdr,
  colour=sig) + geom_point() + geom_text()'
Fetal brain — volcano. Two-sided; enrichment (right) names the neuronal factors, the depleted cloud (left) is CpGs unmethylated in every tissue.

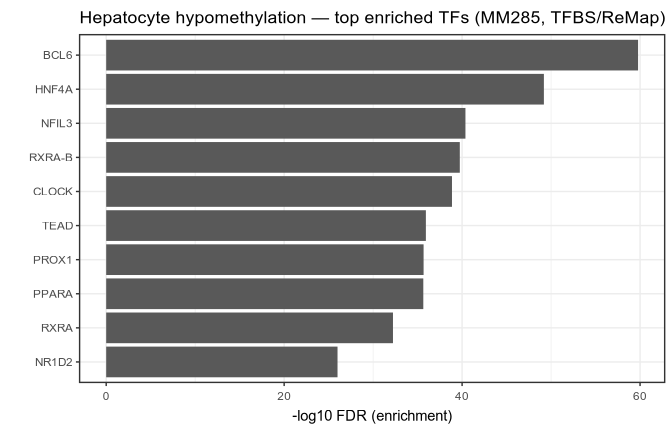

Horizontal bar chart of top hepatocyte-enriched TFs by -log10 FDR
kycg test -m MM285:TFBSrm hepatocyte_hypo.cg
cinderplot 'aes(factor(tf), neglog10_fdr)
  + geom_col() + coord_flip()'
Hepatocyte — top TFs. The hepatic nuclear receptors (HNF4A, PPARA, RXRA) and the circadian core the liver runs on.

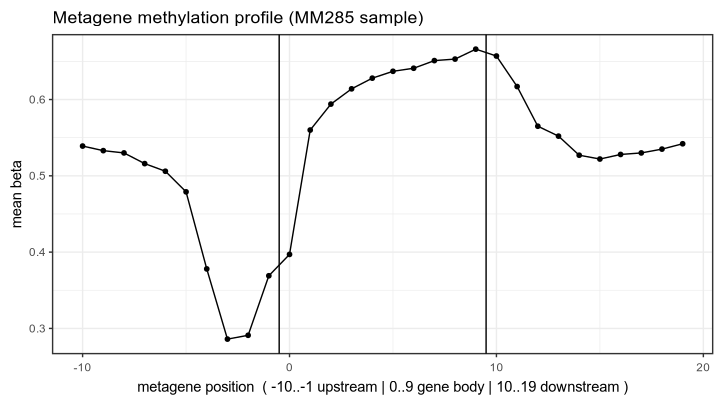

Metagene methylation profile: promoter dip, gene-body rise, downstream return
# sample beta over metagene bins
kycg test -m MM285:MetagenePC mm285_sample.cg
cinderplot 'aes(pos, beta)
  + geom_line() + geom_point()'
Gene architecture — metagene profile. One sample's mean β over 30 metagene bins (kycg test's beta column vs MetagenePC): the textbook promoter/TSS hypomethylation dip, gene-body hypermethylation rising toward 3′, back to baseline downstream.
The signal tracks the cells present, not the organ name: fetal_liver Hypo returns GATA1, TAL1, GATA2 — hematopoietic master regulators, because fetal liver is the site of fetal hematopoiesis. The same command reproduces it.

What the store holds — the comprehensive list

Ten collections behind one command. Sequencing sets index a whole-genome CpG reference and ship with the cpg_nocontig.cr that defines it; array sets index a platform's probe ordering. The two are byte-compatible and semantically incompatible — that is exactly why kycg test checks row counts.

Whole genome — one repo each

TargetSetsSizeSource
hg3832363 MBKYCGKB_hg38
mm1028266 MBKYCGKB_mm10

ChromHMM · CGI · TFBS · PMD · rmsk · HM (histone marks) · ABCompartment · Blacklist · CTCFbind · ImprintingDMR · MetagenePC · Tetranuc · TissueSignature (BLUEPRINT / Brain / Loyfer) · nFlankCG · Centromere · Chromosome · and more.

Arrays — InfiniumAnnotation, per platform

TargetSetsProbes
MSA32284,309
HM45018486,427
EPIC17866,553
MM28517287,692
EPICv216937,690
HM27 / Mammal401527,722 / 38,607

Integrity — two channels, two publishers, two digests

Every file carries its own digest, compiled in. A download is verified against what this build says the file is — never against a manifest the same server served, which is why the mirror you fetch from is untrusted infrastructure. The trade is deliberate: a set published upstream with no row in the registry cannot be verified, so it is not offered. The table is the authority for what exists. The check is not only at download time: a file is classified again when it is read, so a store filled by an older kycg, by another tool at another tag, or by hand says so on the first command that uses it — a warning, and the run continues; a file that is absent is an error naming the fetch that gets it.

One row per file

The registry is projected from YAME's shared table by tools/make_registry.sh, kycg's own emitter, into the row type the whole suite shares (yame_asset_file_t). Each row carries the key, the store path, the URL, the digest, the size and the prose — so planning a fetch needs no network at all, and neither does browsing the catalogue.

{ "zhou-lab/InfiniumAnnotation@v8.1:EPIC/KYCG/CGI.20220904.cm",
  "EPIC/KYCG/CGI.20220904.cm",
  "https://raw.githubusercontent.com/…",
  "e5ab587e836d60c6…", 320296,
  "CpG islands", "CpG-dense, usually promoter-associated…", … }

Tags are per file

Each row's key names its source and the immutable tag it came from, so one collection can move while the rest stay put — and there is no global tag left to override, which is why -t is gone. Zenodo keeps the DOI and remains the citable archive; it is no longer the fetch path.

zhou-lab/genomes@v4:hg38/cpg_nocontig.cr
zhou-lab/KYCGKB_hg38@v2:CGI.20220904.cm

Verify it yourself

Downloads land on a .part sibling and are renamed only after the digest matches, so an interrupted fetch cannot leave a file that later reads as valid. The store is re-checkable with no kycg code at all:

cd ~/.local/share/yame/MSA/KYCG
shasum -a 256 -c --ignore-missing SHA256SUMS

--ignore-missing matters because you rarely hold every set the directory could hold: the manifest kycg writes describes the directory, not the subset you fetched. It is derived from the registry rows for that directory alone, so it no longer lists the genome row list stored a level up — the old "missing cpg_nocontig.cr" that was indistinguishable from a partial fetch is gone.

Output schema — tidy TSV, one row per test

The first columns are yame summary's, renamed. Everything from estimate onward is what kycg adds — yame gives counts and a rounded effect size; kycg tells you which results survive multiple testing.

Identity & counts

ColumnMeaning
query_file, querythe .cg and the sample in it
db_file, dbthe .cm and the record in it
groupFDR stratum: the knowledgebase, or (global) under -G
nU nQ nD overlapthe 2×2 table: universe, query, database, overlap
beta, depthmean over the record — knowYourCG's dbStats, free

Inference & effect size

ColumnMeaning
estimatelog2 odds ratio, full precision; under -c, the enrichment score (+ = large values)
log10_pthe p-value. One-sided hypergeometric tail
neglog10_fdrthe FDR. BH within stratum
p_value, fdrconvenience only — these underflow to 0
cf_jaccard cf_mcc cf_overlap cf_npmi cf_dicefive alternative coefficients
FDR is corrected within one query sample and one knowledgebase — the family knowYourCG corrects over, since testEnrichment() takes a single query and calls p.adjust() on that query's frame. Adding more samples or more knowledgebases to an invocation therefore never changes an FDR already reported. -G widens the stratum to all knowledgebases for a sample.

Correctness — against R, not against intuition

The whole point of collapsing two codebases into one is that the numbers stop drifting. Both layers are checked against R directly.

Unit — vs phyper / p.adjust

$ make test
ok    test_hypergeo        # worst relative error 2.6e-16
ok    test_enrich
...
ok    t_usage
17 passed, 0 failed

Across four regimes: small, array-scale (486K), whole-genome (29M), and the deep tail at log10 p ≈ -584141.

End to end — every column

$ Rscript tests/validate_vs_R.R res.tsv
log10_p     OK   worst 4.09e-12
estimate    OK   worst 4.75e-10
log10 fdr   OK   worst 2.96e-12
PASS: agrees with R on every column.

Residual is output text precision, not computation. Counts are byte-identical to yame summary.

Two things that had to be right

Log space or bust. A linear-space BH assigns FDR 0 to every underflowed row — which is every row anyone cares about.

Loader's saddle-point expansion for the point mass, as R's dhyper() does. A difference of lgamma calls loses ~7 digits to cancellation over a 29M-row universe. htslib's kt_fisher_exact() is unusable for a separate reason: int counts, and it loops "until underflow" by construction.
